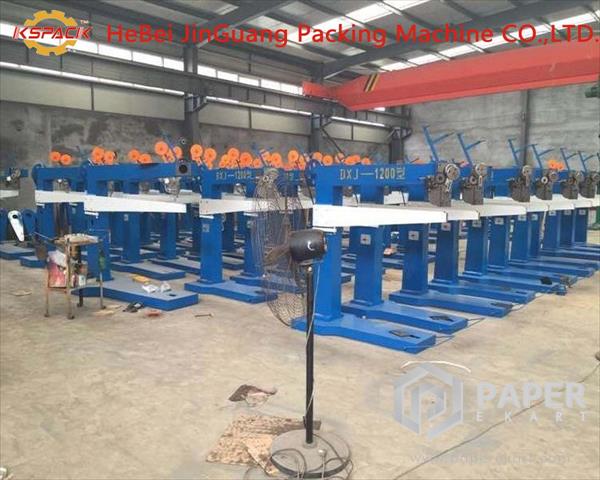

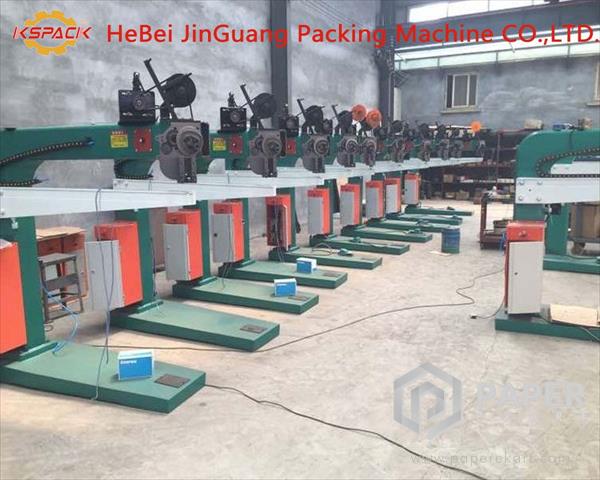

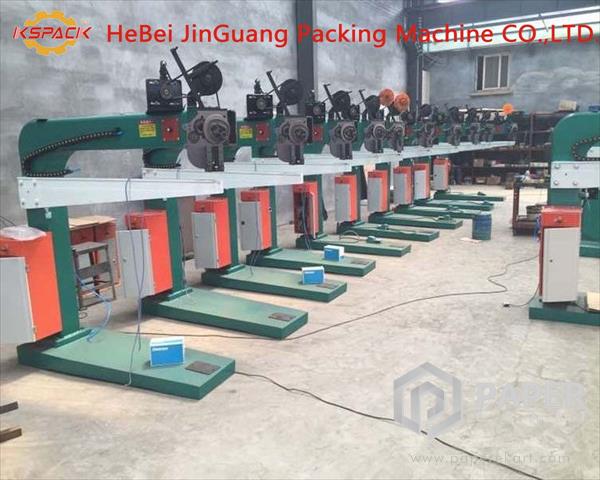

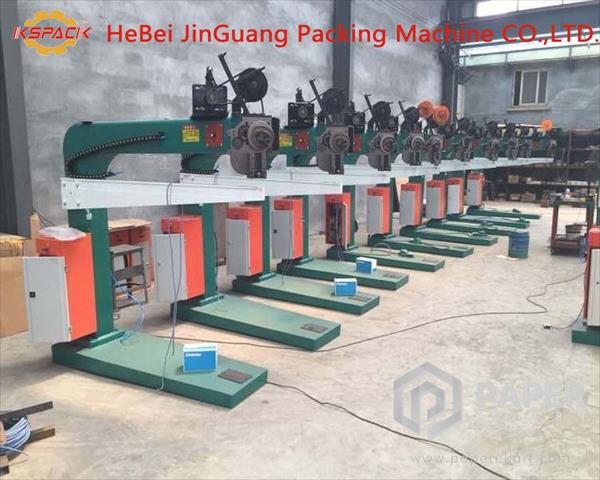

Manual Carton Stitching Machine Corrugated Cardboard Stapling Stapler Machine

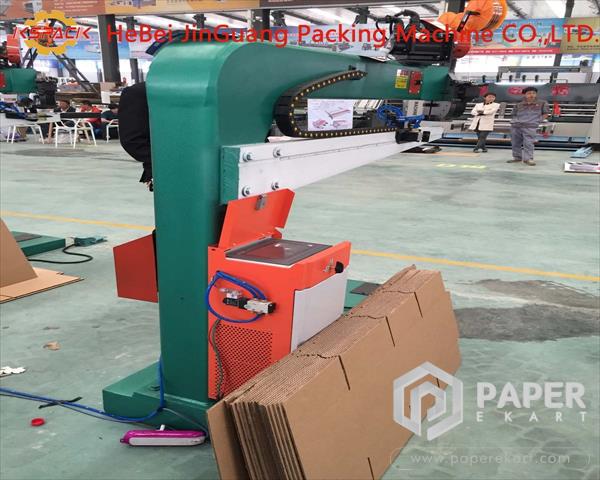

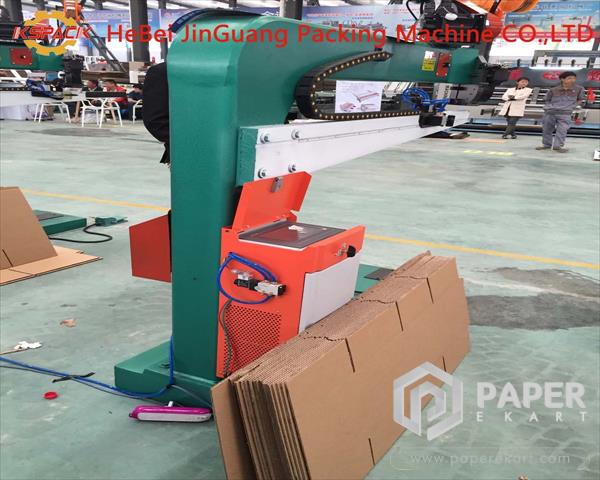

1. Carton box stapler machine machine electric parts
1.Chint mini-circuit breaker DZ47-2P16
2.times Funing proximity switch GAMS-18GM-N1
3.Customizing power distribution boxes 8 Power cable 1.5m 9 Encoder wire 1.5m 10 Power cable 3.5m 11 Encoder wire 3.5 meters 12 Kunlun state 7 inch screen TPC7062KTC(TD)
4. Simple drive main control and servo drive control integrated double servo
5.Simple drive servo motor 130-6nm motor
6.Taiwan Mingwei switching power supply 35W
7. Schenle relay

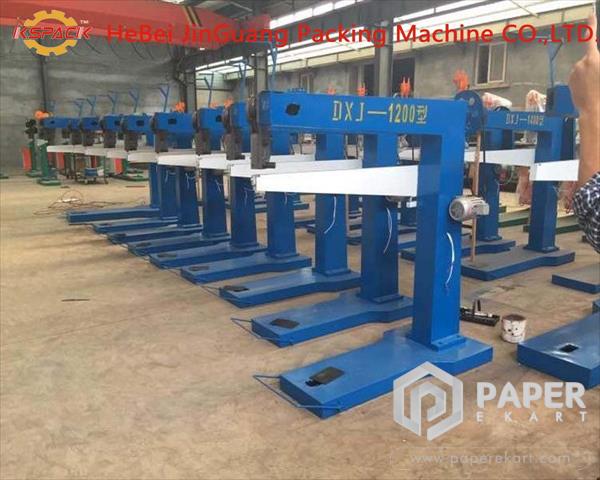

2. Carton box stapler machine technical parameters
| Model |
Stapling Speed |
Stapling Thickness |
Stretching Length of the holding Arm |
Exterior Dimension |
Weight |
| DX-600 |
250 s/min |
3/5 ply |
600 mm |
970x400x1300 |
85KG |
| DX-900 |
250 s/min |
3/5/7 ply |
900 mm |
1360x580x1540 |
275kg |
| DX-1200 |
250 s/min |
3/5/7 ply |
1200mm |
1700x580x1650 |
550kg |
| DX-1400 |
250 s/min |
3/5/7 ply |
1400mm |
1900x580x1650 |
590kg |
| DX-1800 |
250 s/min |
3/5/7 ply |
1800mm |
2270x630x1710 |
700kg
|

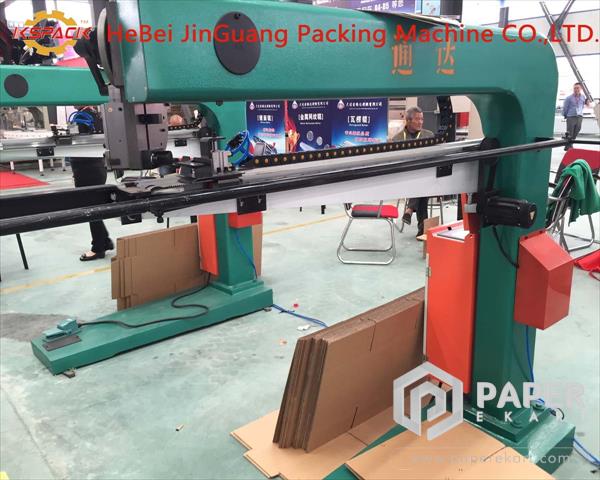

3.Carton box stapler machine specifications
1.the stitching machine head adopts CAM rotation, the structure is simple and easy to maintain, the fork knife overall line cutting and the use of special material, especially the knife head using alloy material durable, connecting rod adopts bearing connection, reduce wear, improve service life.
2.The paper feeding section adopts servo control, precise nail distance, no technical requirements for staff.
3.Stitching machine arms are 1.8m long, and the actual operating surface (box height plus a swing cover) is 1.6m
4.Stitching machine Adjustable speed, 150 times minutes -450 times minutes
