J.S Machine JETS400
Sell Machinery
New
400X860MM kspack Lead Edge Printer Slotter
Brand: kspack
Machine No: 20221219001
Size: 400X860MM
Mfg Yr: 2022
Location China
Description Corrugated Pizza Carton Box Printing Slotting Die cutting Stacker Machinery “AUTO SET” supervision program for full line control In particular the program controls the following functions longitudinal registers back-stop and side guides positioning of feeder creasing and cutting tools positioning of slotting unit folding arms and glue unit positioning counter ejector set-up Possibility to read-in more than 1000 work programs Production statistics and data survey Ready for connection to a printer Possibility of remote assistance MODEL GSYM Series High Speed Printer Diecutter PRINTER COLOR MULTI COLOR MNACHINE SIZE WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM MACHINE DESIGN SPEED DESIGN SPEED 180PCS /MIN WORK SPEED 150PCS /MIN MACHINE WALL BOARD SIZE (mm) 60 GERA THICKNESS (mm) 50 MAX PASSING PAPER SIZE (mm) 1450 X(1800/2000/2200/2400/2600/2800MM) MIN PAPER PASSING SIZE (mm) 400X860MM SKIP PAEER SIZE (mm) 1600X(1800/2000/2200/2400/2600/2800MM) MAX PRINT SIZE (mm) 1400X(1600/1800/2000/2200/2400/2600MM) THINKCNESS OF THE PLATE (mm) 3.2---7.2 BOARD THICKNESS (mm) 3---12 BOARD PRINT ACCURATE (mm) PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 Working power(kw) 25 Total power(km) 43 Read More
New
1200*2400 kspack Lead Edge Printer Slotter
Brand: kspack
Machine No: 20221217004
Size: 1200*2400
Mfg Yr: 2022
Location China
Description Full PLC corrugated fruit carton box printer slotter die cutter stacker making machine Lead-edge suction feeding system, easy operation, high accuracy 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer. Front baffle adjust the position of the upper and lower intervals synchronization by manual. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating. lotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding. ü Max speed 250 ü Max pile height (mm) 350 ü Min pile height(mm) 80 ü max piece in one pile 30 ü Min piece in one pile 10 ü (mm) max paper size 1200*2400 ü (mm) min paper size 350*720 ü (mm) glue flap side max size 700 ü (mm)another size min size 65 ü Total length (m) 14 ü Flut and board suit type A,B,C,E,A+B,B+C,B+E Read More
New
Rion Lead Edge Printer Slotter
Brand: Rion
Machine No: 20230118002
Size: As Per the Customer Requirement
Mfg Yr: 2022
Location china
Description As Per the Customer Requirement Rion Lead Edge Printer Slotter Read More
New
YIKE GROUP Lead Edge Printer Slotter
Brand: YIKE GROUP
Machine No: 20230118003
Size: As Per the Customer Requirement
Mfg Yr: 2022
Location China
Description Characteristics: The biggest characteristic of the Flexo Printer Slotter Folder Gluer Inline (FFG Inline) is high production efficiency, high per capita output value, low labor intensity and low labor cost. It is a common equipment in foreign countries, suitable for producing large quantities of orders, and 2-3 people can complete the entire carton production task. If the factory has a fully automated logistics system, the equipment can be used to maximum efficiency. The intelligent aspects of the printing press are mainly reflected in the daily work, such as hanging the plate, changing the mold using the fast automatic installation mode will greatly reduce the labor intensity. Specification: Item YKL-920E YKL-1228E YKL-1624E Wall board thickness 60mm 60mm 50mm Max Machine Speed (pcs/min) 250 200 180 Economic Working Speed (pcs/min) 200 150 130 Max. Feeding Size (mm) 900X2200 1200×2800 1600X2400 Min. Feeding Size (mm) 300X600 400x900 400X900 Skip-feeding Size (mm) 1200X2400 1400×2400 1800X2400 Standard Plate Thickness (mm) 7.2 7.2 7.2 Min. slotter distance NEGATIVE 300X100X300X100 300X100X300X100 300X100X300X100 Max slotter depth (mm) 600 600 600 Print precision (mm) ±0.3 ±0.3 ±0.3 Slot precision (mm) ±1.0 ±1.0 ±1.0 Die cut precision (mm) ±1.0 ±1.0 ±1.0 Suitable Cardboard Thickness (mm) 2 - 11 2 - 11 2 - 11 Read More
New
LUM Machinery Lead Edge Printer Slotter
Brand: LUM Machinery
Machine No: 20230119002
Size: As Per the Customer Requirement
Mfg Yr: 2023
Location China
Description As Per the Customer Requirement LUM Machinery Lead Edge Printer Slotter Read More
New
Tongbao 4 Color Lead Edge Printer Slotter
Brand: Tongbao
Machine No: 20230118009
Size: As Per the Customer Requirement
Mfg Yr: 2022
Location China
Description â—‡International famous brand electric parts and computer software was used in the whole machine(Schneider).top-quality and steady; Computer order storage and adjustment (Beijing Kunlun MCGS color touch-screen)t, faster order update and convenient operation. â—‡Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts was made by high precision process center and grinded by digit-controlled grinder. â—‡All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface. â—‡All the transmission gear was used the 20 CrMnTi alloy steel, temper, and that parts was made by rubbing,6 grade precision, it still maintains the high topping precision. â—‡The transmission unit(connected with the axle and gear),which adopts the hand-free connecting ring to eliminate the interval,suitable for long-term high-speed running. â—‡All the transmission bearings were adopts strengthen model bearing,setting the dustproof windtight parts and the oiling,handy to maintenance,suitable for long-term to used. â—‡The whole machine undergoes the spray lubrication. â—‡The whole machine adjust presetting function, feeding, printing, slotting, automatic zero setting ,memory automatic reposition. â—‡The whole machine working interval adjustment was adopted free spanner, which is fast to adjustment, and the electromagnetism brake system with the worm wheel and worm setting, fast and convenient to adjustment. â—‡The mainframe was controlled by the frequency conversion),start-up, running more smoothly. â—‡The whole machine adopts computer touch screen phase adjustment。Each unit also can adopt numerical control adjustment. Technical parameters： No parameter Name Parameter value 1 Wall thickness 40mm 2 Max. Speed 120Pieces/min 3 Economic Speed 100Pieces/min 4 Max Printing area 1200*2200mm 5 Max. Paperboard Size 1200*2400mm 6 Min. Paperboard Size 380x500mm 7 Printing Precision ≤±0.5 8 Standard printing plate thickness 4mm Read More
Used Chinese Machine Chain Feed Printer Slotter at pape

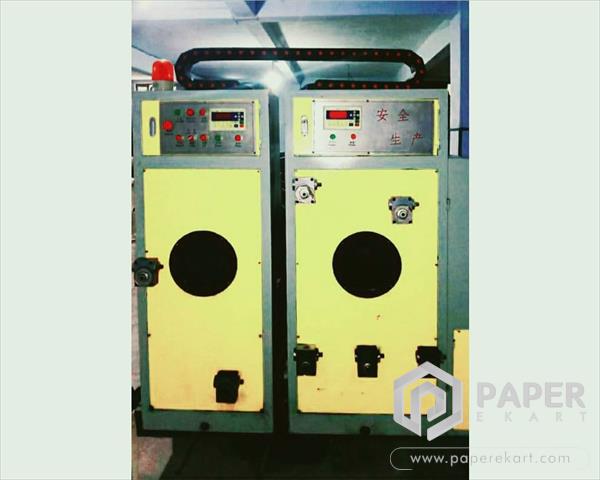

1350 x 2200 mm Chinese Machine Chain Feed Printer Slotter
Price: 850000 (Negotiable)
Brand: Chinese Machine
Machine No: 20220120001
Size: 1350 x 2200 mm
Mfg Yr: 2019
Location Surat, Gujarat, India
Description Read More
New Automatic Machine Lead Edge Printer Slotter i on P
1600 x 2400 mm Virdi Brothers Lead Edge Printer Slotter
Price: 3500000 Onwards.. (Negotiable)
Brand: Virdi Brothers
Machine No: 20220121002
Size: 1600 x 2400 mm
Mfg Yr: 2022
Location Mumbai, Maharashtra, India
Description Features: 1) Four Axis lead edge feeder system 2) Skip feeding setting available, can produce large size boxes 3) Apply expansion sets tight links, long years using with precise printing 4) Colorful touch screen input, "Zero", reposition, save time and boards 5) Powerful main pneumatic cylinder lock, make sure machine stable running. 6) Self-protection system, machine only running after all sections locked well 7) Storage with 1200 orders data base Automation Grade 4 Color Printer Automatic Machine Interval Feeding Size 1600 x 2400 mm Max Paper Size 2500 mm Max Printing Size 1200 x 2200 mm Max Speed 150 Pcs/mm Min Slotting Depth 320 mm Min Slotting Size (Slotting type R {mm}) 150 x 150 x 150 x 150 mm Standard Plate Thickness 7.2 mm Topping Precision 0.5 mm Country of Origin Made in India Usage/Application Commercial Brand VBM Voltage 380 V Model Name/Number MSD-405-2600 Capacity 100Pieces/Min Power 2 HP Read More
Used 2 Color Printer Slotter With Auto Feeder on Paper

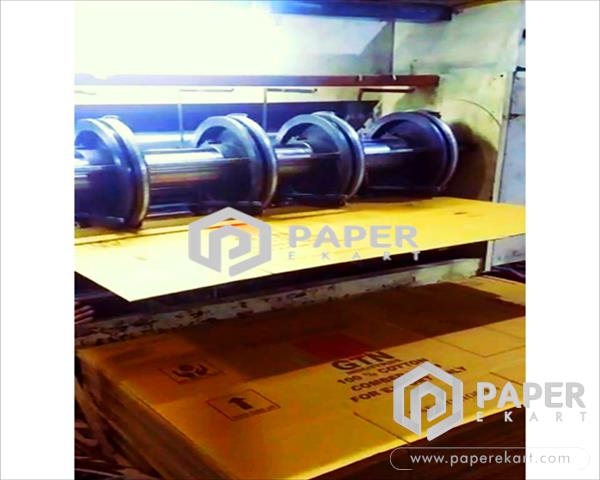

1450 x 2600 mm Tongbao Chain Feed Printer Slotter
Price: 1600000 (Negotiable)
Brand: Tongbao
Machine No: 20220127001
Size: 1450 x 2600 mm
Mfg Yr: 2014
Location Surat, Gujarat, India
Description Read More
