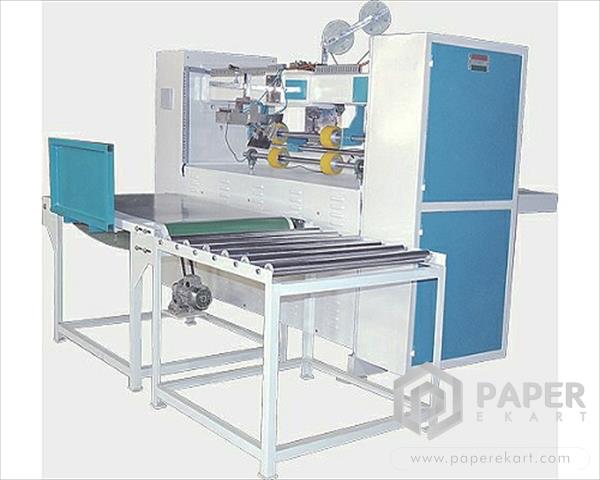

Virdi Brothers Semi Auto Stitching
Price:
900000 Onwards.. (Negotiable)
| Brand: |
Virdi Brothers |
| Machine No: |
20220124005
|
| Mfg Yr: |
2022 |
| Description |
Features:
1) Panasonic - Imported servo driven
2) Touch screen operation parameter, (distance between pin and pin number)
3) PLC Control
4) Siemens brand control panel
5) Photo electric sensor is Panasonic brand
6) Pins distance can bead just able on screen that can be single pin, double pin & strengthen pin
7) Changing carton size& adjusting pins can be completed in one minute, saving time & easy operation.
8) Department of automatic counting, feed units equipped with photo electric sensors, when feeding, table automatically rise.
9) Rear section with automatic counting function,the number of finished carton can be set (1-99) and transport to the machinery and, convenient for bundles package.
10) We can store number of pin on screen.
11) Machine can be operated in MANUAL MODE and AUTOMODE.
12) No skilled worker required.
13) We can store 20 memories in screen.
14) Maintenance free machine& easy to operate.
15) Parameter
Usage/Application Commercial Material Mild Steel Automation Grade Semi-Automatic Power 4HP Voltage 280V Phase Single Phase Weight 2000kg approx Brand VBM Country of Origin Made in India Stitching Speed 400 Stitches/ Min Stitches No. 1-99 Stitches (Adjustable) Stitching Pitch 15-100min (Adjustable) Stack Height 900mm
