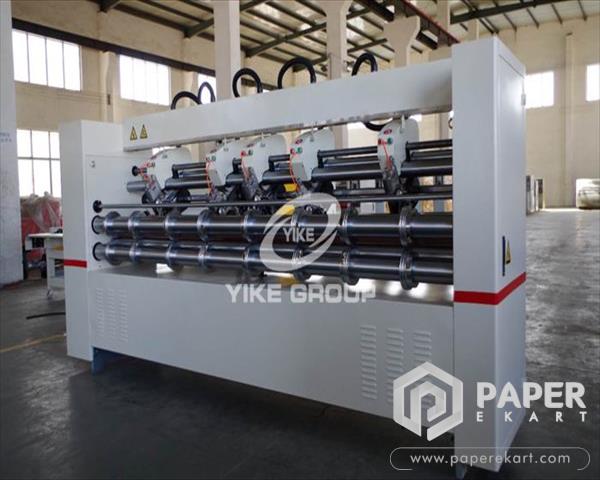

2850x770x1700 YIKE GROUP Thin Blade Rotary Machine

Brand:	YIKE GROUP
Machine No:	20230118005
Size:	2850x770x1700
Mfg Yr:	2022
Location	China
Description	Introduction ● 1. Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjustment .It could be do slitting only without scoring, avoid error when scoring. ● 2. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr. ● 3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. ● 4. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency. ● 5. Adopt China famous brand or imported element, dependable. ● Have different width with different (4.5.6.7) knives Such as: 2200mm 2600mm 2800mm 3100mm Specification: Name YK-1800 Unit Parameter Width of passing paper board MM 1800 Speed of passing paper board M/MIN 60~80 Number of knives Piece 4 No. of track-pressing wheels Pair 6 Min. dividing width mm 130 Min. track-pressing width mm 30 Diameter of knife mm 105x190 Thickness of knife mm 1.2 Motor power kw 4 Size mm 2850x770x1700 Weight kg 1400 Read More
