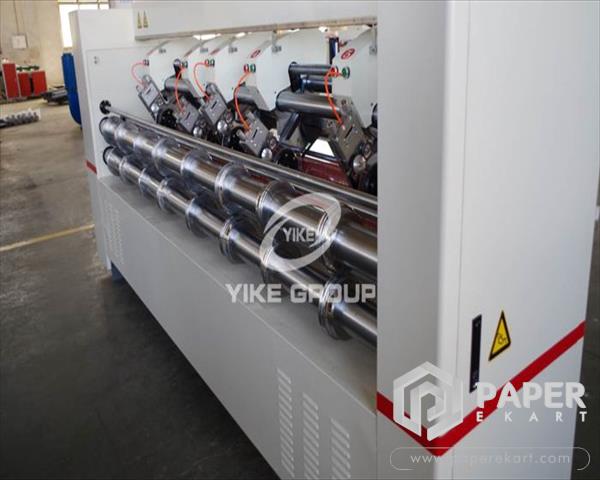

2850x770x1700 YIKE GROUP Thin Blade Rotary Machine

 68 Views
Machine ID 20230118005
Seller Yike Carton Machinery Co., Ltd
Brand YIKE GROUP
Size 2850x770x1700
Mfg Year 2022
Location China
Sub Category Thin Blade Rotary Machine
Machine Condition New|Order Basis

Introduction

● 1. Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjustment .It could be do slitting only without scoring, avoid error when scoring.

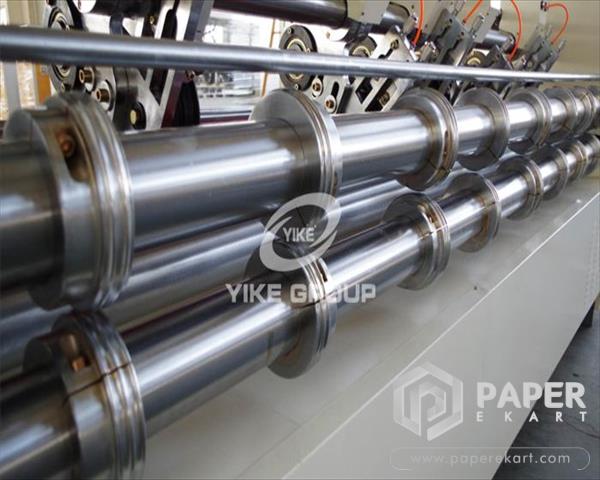

● 2. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

● 3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

● 4. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.

● 5. Adopt China famous brand or imported element, dependable.

● Have different width with different (4.5.6.7) knives Such as: 2200mm 2600mm 2800mm 3100mm



Specification:

Name YK-1800 Unit Parameter
Width of passing paper board MM 1800
Speed of passing paper board M/MIN 60~80
Number of knives Piece 4
No. of track-pressing wheels Pair 6
Min. dividing width mm 130
Min. track-pressing width mm 30
Diameter of knife mm 105x190
Thickness of knife mm 1.2
Motor power kw 4
Size mm 2850x770x1700
Weight kg 1400
