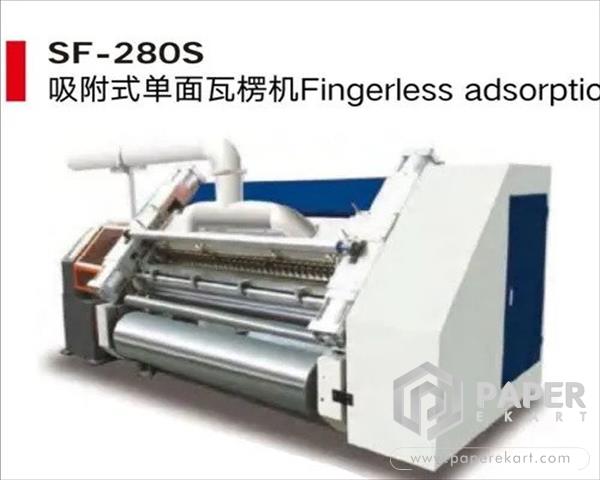

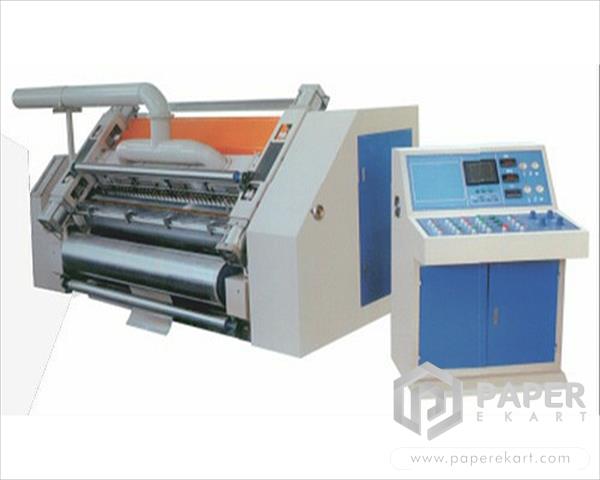

1400mm- 1800mm Electromechanical Fingerless Single Facer Corrugation Machine
Price:
2500000 Onwards.. (Negotiable)
| Brand: |
Electromechanical |
| Machine No: |
20220816002
|
| Size: |
1400mm- 1800mm |
| Mfg Yr: |
2022 |
| Description |
1. Design speed: 100m/min.
2. Effective width: 1400mm- 1800mmm speed: 20 SS-1 3. Corrugated roller: (p 280mm. 4. The driving reducer adopts oil penetration team
lubrication, reducing noise, universal joint
drive and isolating power source.
5. Upper roller, pressure roller and rubber roller end lift, all with pneumatic control. 6. The guide paper adopts vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated type in high speed. 7. The roller and pressure roller bearings are lubricated with high temperature resistance grease. 8. The gelatinize part adopts automatic
circulation for glue.
9. The upper and lower corrugated roller
adopts 48CrMo high quality chromium
aluminum alloy steel, after heat treatment, the
hardness is grinding on the surface of hrc58o
600
10. The surface of the rubber roller has been
and treated with the mesh cut and chrome plating above HVi200
11. Manual or electric separation device.
12. The machine can operate independently or
without independent operation, and the main
power converter control (optional)
