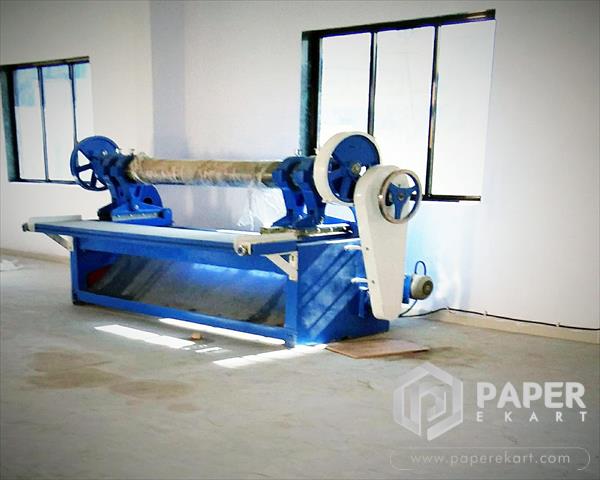

65 Inch, 75 Inch, 85 Inch Pratham Slotting machine
Price:
300000 Onwards.. (Negotiable)
| Brand: |
Pratham |
| Machine No: |
20220124001
|
| Size: |
65" Inch, 75" Inch, 85" Inch |
| Mfg Yr: |
2022 |
| Description |
The Machine is meant to slot and corner cut the corrugated board simultaneously. The machine is provided with three slotting heads and one corner cutting head.These heads can be easily set by means of gear rack mechanism provided with themachine. Screws are provided on the slotting for adjusting the side cutters. Technical Specifications
Size Slot Depth Max Min/Distance Between 2 Slot Motor H.P. 65" 18" 4" 2 75" 18" 5" 2 85" 18" 5" 3
