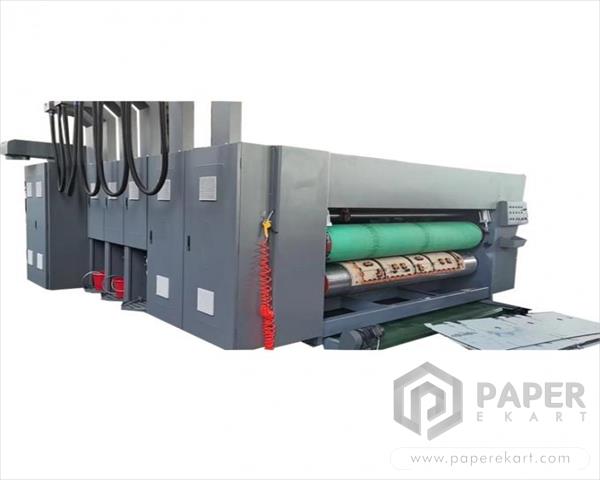

Corrugated Pizza Carton Box Printing Slotting Die cutting Stacker Machinery
“AUTO SET” supervision program for full line control
In particular the program controls the following functions
longitudinal registers
back-stop and side guides positioning of feeder
creasing and cutting tools positioning of slotting unit
folding arms and glue unit positioning
counter ejector set-up
Possibility to read-in more than 1000 work programs
Production statistics and data survey
Ready for connection to a printer
Possibility of remote assistance
| MODEL |
GSYM Series High Speed Printer Diecutter |
| PRINTER COLOR |
MULTI COLOR |
| MNACHINE SIZE |
WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM |
| MACHINE DESIGN SPEED |
DESIGN SPEED 180PCS /MIN |
| WORK SPEED |
150PCS /MIN |
| MACHINE WALL BOARD SIZE (mm) |
60 |
| GERA THICKNESS (mm) |
50 |
| MAX PASSING PAPER SIZE (mm) |
1450 X(1800/2000/2200/2400/2600/2800MM) |
| MIN PAPER PASSING SIZE (mm) |
400X860MM |
| SKIP PAEER SIZE (mm) |
1600X(1800/2000/2200/2400/2600/2800MM) |
| MAX PRINT SIZE (mm) |
1400X(1600/1800/2000/2200/2400/2600MM) |
| THINKCNESS OF THE PLATE (mm) |
3.2---7.2 |
| BOARD THICKNESS (mm) |
3---12 |
| BOARD PRINT ACCURATE (mm) |
PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 |
| Working power(kw) |
25 |
| Total power(km) |
43 |
