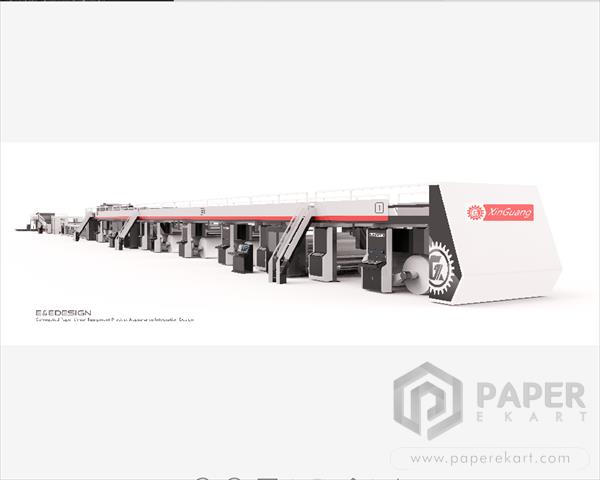

XinGunag Wj300-2500 Corrugated Board Production Line Corrugation Machine

 653 Views
Machine ID 20230829003
Seller paperekart.com
Brand XinGunag Wj300-2500 Corrugated Board Production Line
Size 0
Mfg Year 2023
Location Vapi, Gujarat, India
Sub Category Corrugation Machine
Machine Condition New|Order Basis

WJ300-2500-Ⅱtype five layer corrugated paperboard production line

Specification

Equipment name

QTY

Remark

     ZJ-V6B

Hydraulic shaftless mill roll stand

5set

Spindle270mmhyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle. Pneumatic ejector.

YXC

Hydraulic pressurePaper system

10set

Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley.

JZJ-A

Automatic splicer

5set

Automatic splicer keep corrugating cardboard assembly line uninterrupted workReduce paper consumptionGreatly improve productivity.Maximum speed 300m/min

RG-1-10B

Top paper preheat cylinder

2set

Roller1000mm, including pressure vessel certificate. Adjust the wrap angle electrically. The wrap angle can adjust the heated area of the paper within 360°. The angle of wrap is automatically adjusted according to the speed of the vehicle, the angle of the wrap angle is displayed on the touch screen, and the parking automatically returns to zero to facilitate paper penetration.

RG-1-10B

Top paper preheat cylinder

2set

Roller1000mm, including pressure vessel certificate. Adjust the wrap angle electrically. The wrap angle can adjust the heated area of the paper within 360°. The angle of wrap is automatically adjusted according to the speed of the vehicle, the angle of the wrap angle is displayed on the touch screen, and the parking automatically returns to zero to facilitate paper penetration.

SF-500A

Multi-cassette positive pressure single facer

2set

Main corrugating roller500mmcorrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic parking relief.

DY-C

Electric hydraulic roller change forklift

1set

Large capacity battery, power walking, hydraulic lift, centralized control.

MK-500A

Corrugating roller quick change

Module

1set

Corrugating roller diameter:500mmwith tungsten carbide dealingModules includingBoth ends of the shaft seatbearingsteam elementSuction boxPneumatic components assembly.

RG-3-1060

Triple preheater

1set

Roller1000mm, including pressure vessel certificate. Adjust the wrap angle electrically. The wrap angle can adjust the heated area of the paper within 360°. The angle of wrap is automatically adjusted according to the speed of the vehicle, the angle of the wrap angle is displayed on the touch screen, and the parking automatically returns to zero to facilitate paper penetration.

GM-35

Doubleglue machine

1set

Glue roller diameter 320mmFrequency motor drive, PLC control. Glue quantityPCL automatic adjustmentHMI touch screen display.

TQ-A

Conveyor bridge

1set

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction.

XG-JP

Automatic correction

1set

No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment

Full width infrared detection curtainReduce paper waste generated tearreduce the waste of paper edge not to precision.

SM-E

Double facer

1set

The frame is 400 mm national standard channel steel, chrome plated hot plate 600 mm *18 pieces, the entrance uses arc-shaped hot plate to make the facial paper heat up extremely quickly, and the design structure of the whole pressure plate is touched. PLC automatically controls the pressure plate. The upper and lower belts have automatic deviation correction, temperature display, and frequency conversion motor. The PID automatic temperature control system is used to link the three-layer and five-layer automatic control of the number of temperature hot plates, which is highly efficient and energy-saving.


Temperature Control System

1set

The PID automatic temperature control system is connected with the production tube, and the number of temperature heating plates is automatically controlled by the three and five layers, which is highly efficient and energy saving.

NC-QD

Automatic multifunctional cutting machine

1set

Servo control cuts to quickly remove waste cardboard; servo control for smooth paper feeding and conveying


Collecting trolley

1set



Stainless steel paper tray

1set


NCBD

NC thin blade slitter scorer

2set

Tungsten alloy steel, seven knives twelve lineszero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box, plus air conditioning and dehumidification.


Automatic waste suction system

1set

Including: four sets of waste suction port pneumatic switching system, 12 meters stainless steel waste suction hose, 12 meters metal waste suction pipe, 22KW paper shredding fan and controller, etc.

NC-35D

NC cutter helical knives

1set

Full AC synchronous servo control, energy storage brake, spiral knife structure, helical gear drive, hollow knife shaft, lubricating oil pressure protection, 10.4-inch touch screen display. Closed electric control box, plus air-conditioning and dehumidification


Automatic waste board machine

1set

Automatically eliminate the cardboard joints for changing sheets that are inserted and cut by the cross-cutting machine, and servo-control cardboard conveying.

NC-DLM

Automatic large gantry stacker

1 set

Servo drive platform lift,foursections of frequency transmission, automatic points in batches, automatic stacking discharge, imported high-strength belt output,out paper side standard transport aircraft.

SG

Production Management System

(complex)

1set

Improve the automation of production lineseasy to operate.reduce consumption,Improve the utilization of the base papersave costs. Automatic control production linestable quality cardboard.Increase the average speedIncrease productivity.Automatic statistics productionEasy to keep control of the production line, improve efficiency.

ZJZ

Glue station system

1set

Customers -owned pipeline.Glue configuration is composed by carrier tankmain tankstorage tankand send plastic pumpback plastic pump.

QU

Gas source system

1set

Gas source is prepared by the customers.

ZQ

Steam system

1set

Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.trapspressure table and so on.Customer-owned boilers and pipes.

DQ

Electrical control cabinet system


Electric control system: Adsorption single-sided machine, drive unit, double-sided machine, and gluing machine all use frequency conversion motors, Siemens frequency conversion control system. The operation interface is simple and convenient. The speed display control cabinet is equipped with the speed display of each unit, the unit call, and the emergency stop function. The main contactor adopts Germany's Siemens SIEMENS brand-name products, the main frequency conversion motor adopts Siemens Bader brand, the main bearing adopts Japan NSK, and the main inverter and PLC adopt Siemens.
